E-Dog
CHIKE E-Dog
For daily commutes in the city or the way from home to a long walk in the forest: the new Chike E-Dog is the cargo bike for you and your dog. And of course it’s also suitable for shopping.
For you and your dog.
When boarding, your dog has the choice – he can either walk into the cabin via the pull-out steps (available as an accessory) or simply jump onto the 55 cm high platform. The CHIKE is stable and safe thanks to the locking lever of the tilt chassis and the parking brake.
“You feel a bit like Elliott with the BMX bike from the science fiction film E. T.-a real Chike E(T)-Dog experience.”
ElektroRad
For you and your dog.
When boarding, your dog has the choice – he can either walk into the cabin via the pull-out steps (available as an accessory) or simply jump onto the 55 cm high platform. The CHIKE is stable and safe thanks to the locking lever of the tilt chassis and the parking brake.
“You feel a bit like Elliott with the BMX bike from the science fiction film E. T.-a real Chike E(T)-Dog experience.”
ElektroRad
Comfort. Safety. Versatility.
The sprung tilting chassis makes CHIKE extremely safe, maneuverable and comfortable. A huge advantage not only in the city.
Comfort
Security
Versatility
Comfort.
When boarding, your dog has the choice – he can either walk into the cabin via the pull-out steps (available as an accessory) or simply jump onto the 55 cm high platform. The CHIKE is stable and safe thanks to the locking lever of the tilt chassis and the parking brake. A cozy and easy-care cushion awaits you in the cabin. The spring-mounted tilting technology and the well-tuned motor for cargo bikes make the CHIKE very comfortable to ride. The fly screens on the sides ensure sufficient ventilation.
Security.
The side windows and the front window offer a great all-round view. The roof window in front of the handlebars gives you a perfect view of your dog – and the upright sitting position means you can comfortably keep an eye on the traffic yourself. Your dog is optimally protected in the cabin made of sturdy aluminum tubes. The fly screen also protects against bees and wasps during the ride, while the optional rain cover protects against wind and weather.
Versatility.
With the E-Dog you are flexible on the road. As the Chike is only 73 cm wide, it fits on any cycle path and through any door. With a length of 194 centimetres, it doesn’t take up much space. And if your dog stays at home to rest after a day out, you can also use the CHIKE E-Dog to get his food.
Durable.
The powder-coated 7005 aluminum frame in combination with high-quality components ensures that you will enjoy your CHIKE cargo bike for a lifetime.
Cabin
Measuring 65 x 63 x 60 cm (length x width x height), the cabin of the CHIKE E-Dog offers ideal space for medium-sized dogs. The fly screen is integrated, and the rain cover and cushion are available as options. Perhaps your dog prefers to lie on his favorite blanket.

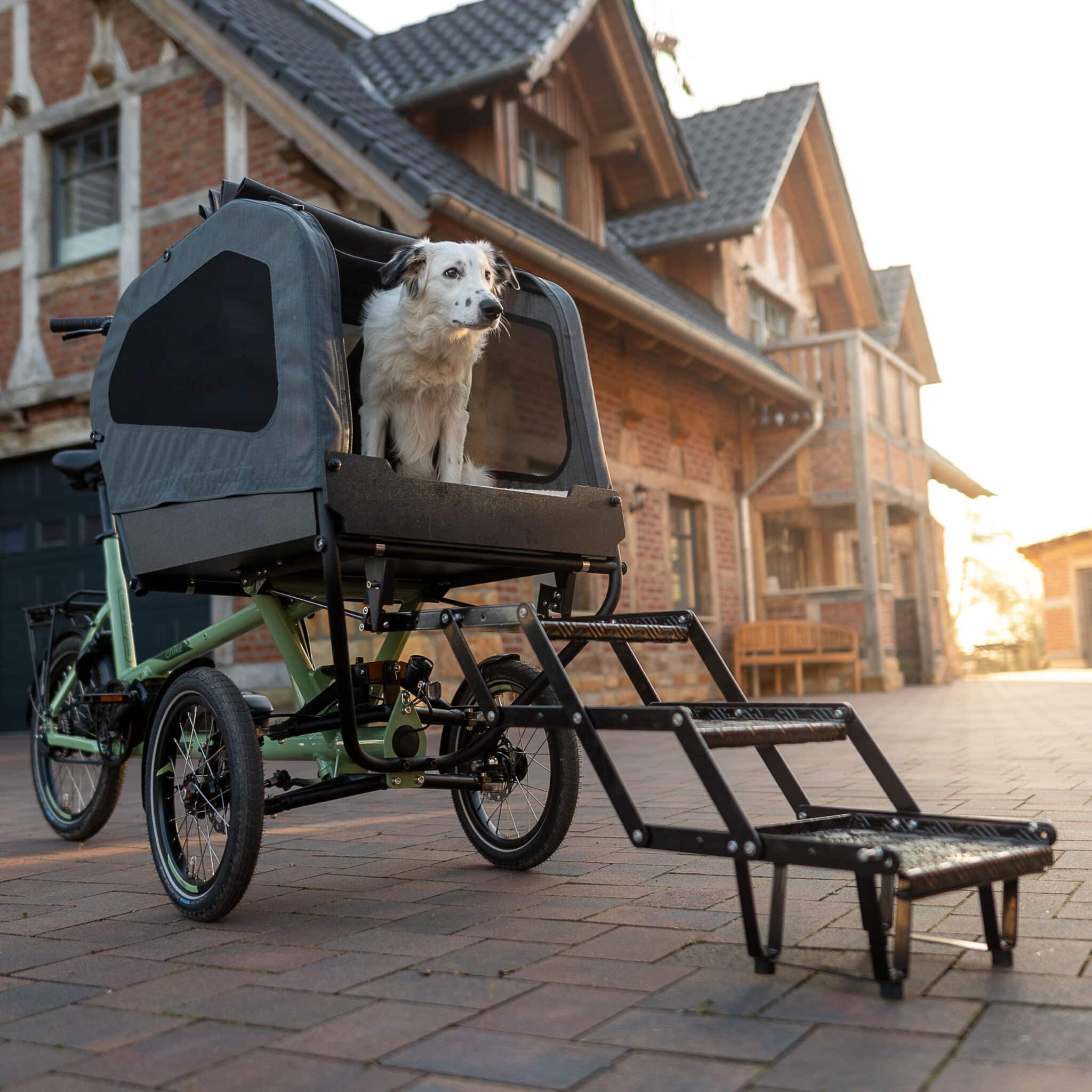

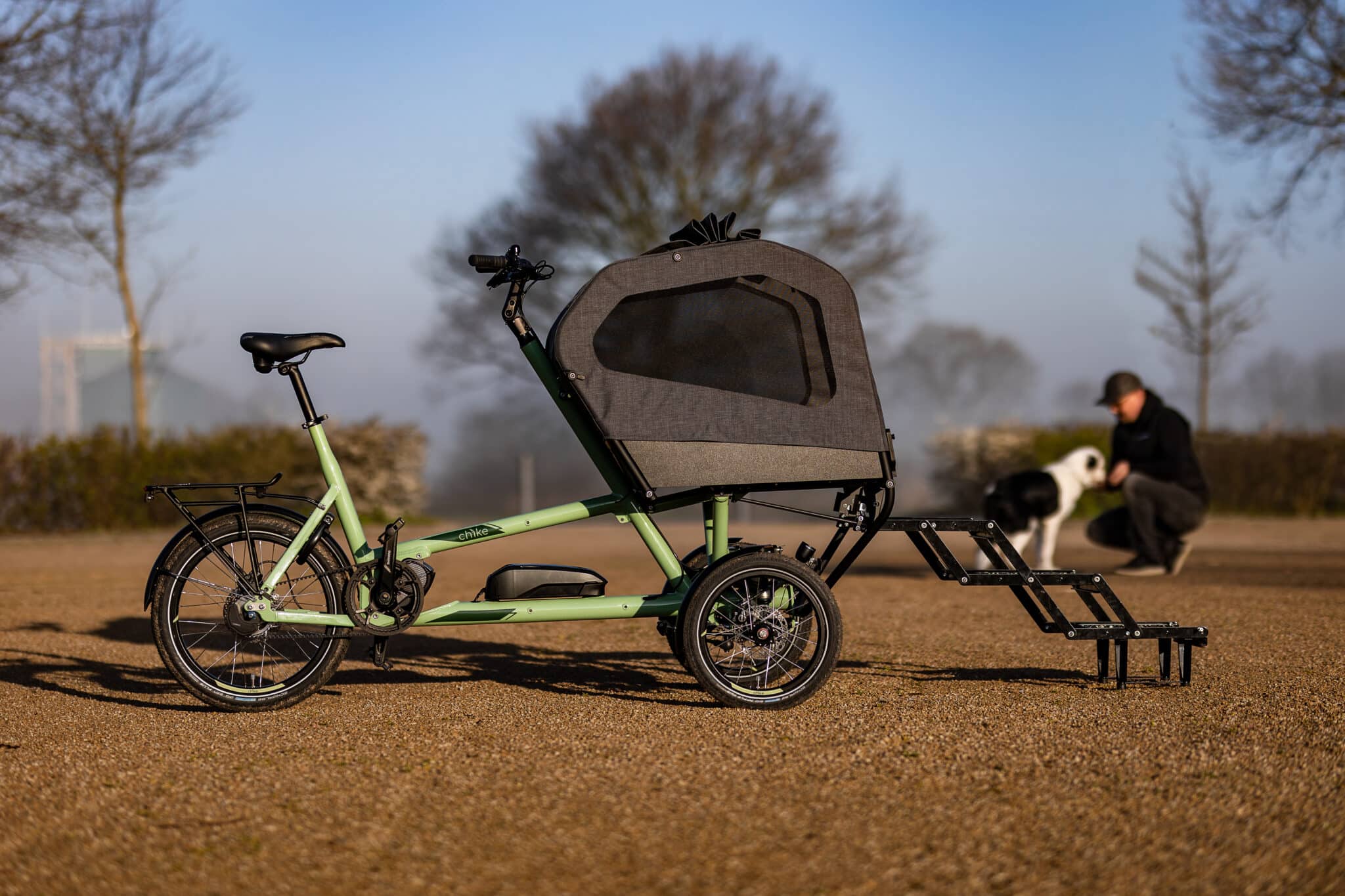

Stairs
The optional staircase is made for all dogs who prefer to take one step at a time instead of making a big leap. It can be pushed together compactly and locked into place under the lying surface.
Cabin
Measuring 65 x 63 x 60 cm (length x width x height), the cabin of the CHIKE E-Dog offers ideal space for medium-sized dogs. The fly screen is integrated, and the rain cover and cushion are available as options. Perhaps your dog prefers to lie on his favorite blanket.
Stairs
The optional staircase is made for all dogs who prefer to take one step at a time instead of making a big leap. It can be pushed together compactly and locked into place under the lying surface.
Durable.
The powder-coated 7005 aluminum frame in combination with high-quality components ensures that you will enjoy your CHIKE cargo bike for a lifetime.
E-Dog
7.999€
|
 |
 |
E-Dog SE
6.999€
 |
 |
Dimensions + payload
| Length | 194 cm |
| Width | 73 cm |
| Weight | 38 kg |
| Permissible total weight | 200 kg |
| Maximum payload cabin | 60 kg |
| Maximum payload Euroboxes | 2 x 12 kg |
| Maximum luggage carrier load | 25 kg |
| Maximum rider weight | 100 kg |
| Frame height | universal, suitable for people between 1.60 m and 2.00 m |
Cabin
| Length | 65 cm |
| Width | 63 cm |
| Height (up to the canopy) | approx. 60 cm |
| Canopy | Removable rain cover, with mosquito screen |
Equipment
| E-Dog | E-Dog SE | |
| motor | SHIMANO EP6 “DU-EP600-CRG” | SHIMANO “DU-E6100-CRG” |
| Battery |
SHIMANO “BT-EN606”, 630 Wh
|
SHIMANO “BT-E8014”, 418 Wh
|
| Gearshift | SHIMANO Inter 5E Di2, electronically shifted, automatic mode | SHIMANO Nexus 5-speed |
| Crankarms | SHIMANO “FC-EM600”, 170mm, Hollowtech II | SHIMANO “FC-E6100”, 175mm |
| Pedals |
CONTEC “Quick +”
|
CONTEC “Quick +” |
| Chain/belt |
GATES “CDX” belt, 108 teeth
|
CONTEC “eNHANCED Drive eD.8”, 8-speed
|
| Front chainring/pulley |
GATES “CDX”, 55 teeth, incl. spider and guard
|
SHIMANO “SM-CRE61”, 44 teeth |
| Rear sprocket/pulley |
GATES “CDX”, 34 teeth
|
SHIMANO “CS-C7000”, 27 teeth
|
| Brake front wheels |
TEKTRO disc brake “Auriga Twin” HD-T525, hydraulic, 2 piston, post mount
|
TEKTRO disc brake “Auriga Twin” HD-T525, hydraulic, 2 piston, post mount |
| Rear wheel brake |
TEKTRO disc brake “HD-T285”, hydraulic, 2 pistons
|
TEKTRO disc brake “HD-T285”, hydraulic, 2 pistons
|
| Front wheel rims |
SCHÜRMANN “YAK DISC 25”, 25-305, 24 hole
|
SCHÜRMANN “YAK DISC 25”, 25-305, 24 hole |
| Rear wheel rims | SCHÜRMANN “YAK DISC 25”, 25-406, 32 holes | SCHÜRMANN “YAK DISC 25”, 25-406, 32 holes |
| Front wheel hubs | BITEX, 6-hole, 24 hole, 12mm |
BITEX, 6-hole, 24 hole, 12mm |
| Rear wheel hub | SHIMANO “SG-C7050-5D”, 5-speed, Di2, freehub, Center Lock, 32 hole | SHIMANO “Nexus SG-C7000-5D”, 5-speed, freehub, Center Lock, 32 hole |
| Front wheel tires | SCHWALBE “Big Apple” Active Line, 50-305 | SCHWALBE “Big Apple” Active Line, 50-305 |
| Rear tire | SCHWALBE “Big Ben” Performance Line, 55-406 | SCHWALBE “Big Ben” Performance Line, 55-406 |
| Handlebars | SATORI “Noirette”, 630mm |
SATORI “Noirette”, 630mm |
| Stem | SATORI “UP2”, angle-adjustable | SATORI “UP2”, angle-adjustable |
| Grips | CONTEC “Ergo +” | Hermann Linetech |
| Display | SHIMANO “SC-EN610”, 4-speed, Bluetooth, LCD color display | SHIMANO “SC-E6100”, 4-speed |
| Shift lever | SHIMANO “SW-EN600” | SHIMANO “Nexus SL-C7000-5” |
| Seat post | SATORI “Astro”, Ø 31.6mm |
SATORI “Astro”, Ø 31.6mm |
| Saddle |
CONTEC “Volare City EL”, unisex
|
CONTEC “Volare City EL”, unisex
|
| Headlights | BUSCH & MÜLLER “IQ-XS E” 70 Lux | BUSCH & MÜLLER “IQ-XS E” 70 Lux |
| Rear light | SPANNINGA “Pimento XE” | SPANNINGA “Pimento XE” |
| Luggage carrier | ATRANVELO “Tour 365″, 20”, AVS system, incl. spring flap | ATRANVELO “Tour 365″, 20”, AVS system, incl. spring flap |
| Frame lock | AXA “Block XXL” | AXA “Block XXL” |
Specifications.
Dimensions + payload
| Length | 192 cm |
| Width | 73 cm |
| Weight | 38 kg |
| Permissible total weight | 200 kg |
| Maximum payload cabin | 60 kg |
| Maximum payload Euroboxes | 2 x 12 kg |
| Maximum luggage carrier load | 25 kg |
| Maximum rider weight | 100 kg |
| Frame height | universal, suitable for people between 1.60 m and 2.00 m |
Cabin
| Length | 65 cm |
| Width | 63 cm |
| Height (up to the canopy) | approx. 60 cm |
| Canopy | Removable rain cover, with mosquito screen |
E-Dog equipment
| motor | SHIMANO EP6 “DU-EP600-CRG” |
| Battery |
SHIMANO “BT-EN606”, 630 Wh
|
| Gearshift | SHIMANO Inter 5E Di2, electronically shifted, automatic mode |
| Crankarms | SHIMANO “FC-EM600”, 170mm, Hollowtech II |
| Pedals |
CONTEC “Quick +”
|
| Chain/belt |
GATES “CDX” belt, 108 teeth
|
| Front chainring/ pulley |
GATES “CDX”, 55 teeth, incl. spider and guard
|
| Rear sprocket/pulley |
GATES “CDX”, 34 teeth
|
| Brake front wheels |
TEKTRO disc brake “Auriga Twin” HD-T525, hydraulic, 2 piston, post mount
|
| Rear wheel brake |
TEKTRO disc brake “HD-T285”, hydraulic, 2 pistons
|
| Front wheel rims |
SCHÜRMANN “YAK DISC 25”, 25-305, 24 hole
|
| Rear wheel rims | SCHÜRMANN “YAK DISC 25”, 25-406, 32 holes |
| Front wheel hubs | BITEX, 6-hole, 24 hole, 12mm |
| Rear hub | SHIMANO “SG-C7050-5D”, 5-speed, Di2, freewheel, center lock, 32 hole |
| Front wheel tires | SCHWALBE “Big Apple” Active Line, 50-305 |
| Rear tire | SCHWALBE “Big Ben” Performance Line, 55-406 |
| Handlebars | SATORI “Noirette”, 630mm |
| Stem | SATORI “UP2”, angle adjustable |
| Grips | CONTEC “Ergo +” |
| Display | SHIMANO “SC-EN610”, 4-speed, Bluetooth, LCD color display |
| Shift lever | SHIMANO “SW-EN600” |
| Seat post | SATORI “Astro”, Ø 31.6mm |
| Saddle |
CONTEC “Volare City EL”, unisex
|
| Headlights | BUSCH & MÜLLER “IQ-XS E” 70 Lux |
| Rear light | SPANNINGA “Pimento XE” |
| Luggage carrier | ATRANVELO “Tour 365″, 20”, AVS system, incl. spring flap |
| Frame lock | AXA “Block XXL” |
E-Dog SE equipment
| motor | SHIMANO “DU-E6100-CRG” |
| Battery |
SHIMANO “BT-E8014”, 418 Wh
|
| Gear system | SHIMANO Nexus 5-speed |
| Crankarms | SHIMANO “FC-E6100”, 175mm |
| Pedals | CONTEC “Quick +” |
| Chain/belt |
CONTEC “eNHANCED Drive eD.8”, 8-speed
|
| Front chainring/ pulley | SHIMANO “SM-CRE61”, 44 teeth |
| Rear sprocket/pulley |
SHIMANO “CS-C7000”, 27 teeth
|
| Brake front wheels | TEKTRO disc brake “Auriga Twin” HD-T525, hydraulic, 2 pistons, post mount |
| Rear wheel brake |
TEKTRO disc brake “HD-T285”, hydraulic, 2 pistons
|
| Front wheel rims | SCHÜRMANN “YAK DISC 25”, 25-305, 24 holes |
| Rear wheel rims | SCHÜRMANN “YAK DISC 25”, 25-406, 32 holes |
| Front wheel hubs | BITEX, 6-hole, 24 hole, 12mm |
| Rear wheel hub | SHIMANO “Nexus SG-C7000-5D”, 5-speed, freewheel, center lock, 32 hole |
| Front wheel tires | SCHWALBE “Big Apple” Active Line, 50-305 |
| Rear tire | SCHWALBE “Big Ben” Performance Line, 55-406 |
| Handlebars | SATORI “Noirette”, 630mm |
| Stem | SATORI “UP2”, angle adjustable |
| Grips | CONTEC “Ergo +” |
| Display | SHIMANO “SC-E6100”, 4-speed |
| Shift lever | SHIMANO “Nexus SL-C7000-5” |
| Seat post | SATORI “Astro”, Ø 31.6mm |
| Saddle |
CONTEC “Volare City EL”, unisex
|
| Headlights | BUSCH & MÜLLER “IQ-XS E” 70 Lux |
| Rear light | SPANNINGA “Pimento XE” |
| Luggage carrier | ATRANVELO “Tour 365″, 20”, AVS system, incl. spring flap |
| Frame lock | AXA “Block XXL” |
Drive
The Shimano STEPS EP6 E-bike system offers you maximum performance and reliability. The intelligent drive support ensures an effortless, natural riding experience. The CRG version of the motor optimized for cargo bikes is installed in the CHIKE. The high-quality, carbon fiber-reinforced CDX belt from GATES is pleasantly quiet, does not require lubrication and lasts far longer than a chain.
Circuit
The electronically shifted Shimano Inter 5E Di2 hub gear ensures fast and smooth performance. The automatic mode guarantees relaxed and safe riding without manual gear changes, including start mode, in which the gearshift automatically shifts back to the previously defined starting gear at a red light, for example.
